🎬 7" Wireless HDR Touchscreen Field Monitor & Recorder (HDMI / SDI)

A professional 7-inch wireless field monitor and recorder with Full HD resolution, HDR support, and advanced monitoring tools. Designed for filmmakers, broadcasters, and production crews who require reliable monitoring, wireless video transmission, and on-board recording in a compact form factor.

---

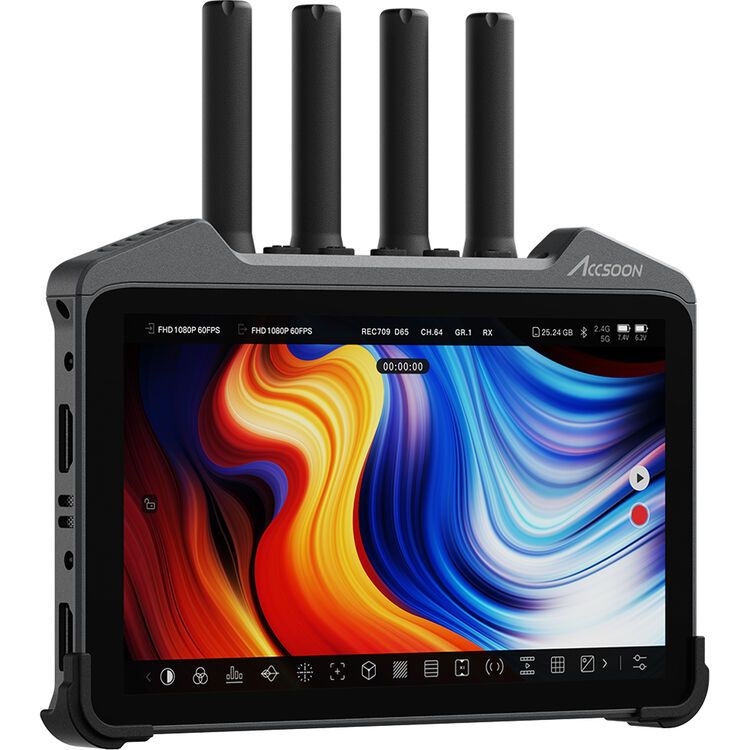

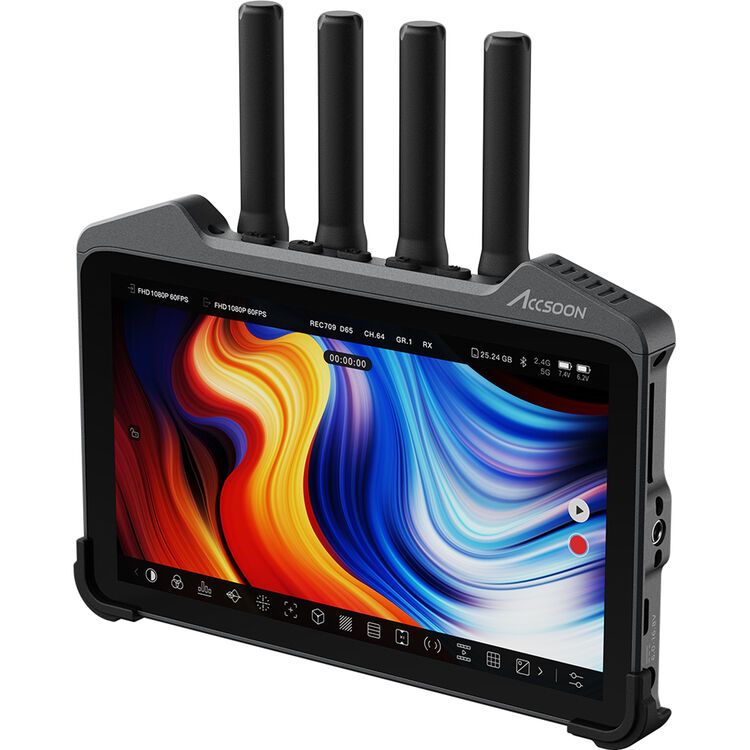

🖥 Display

• Panel type: LCD
• Screen size: 7.0" / 17.8 cm
• Native resolution: 1920 × 1080 (Full HD)
• Aspect ratio: 16:9
• Touchscreen: Yes
• Brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angle:
  • Horizontal: 176°
  • Vertical: 176°
• HDR support: Yes
• Color gamut: 100% Rec.709
• LUT support: Yes

---

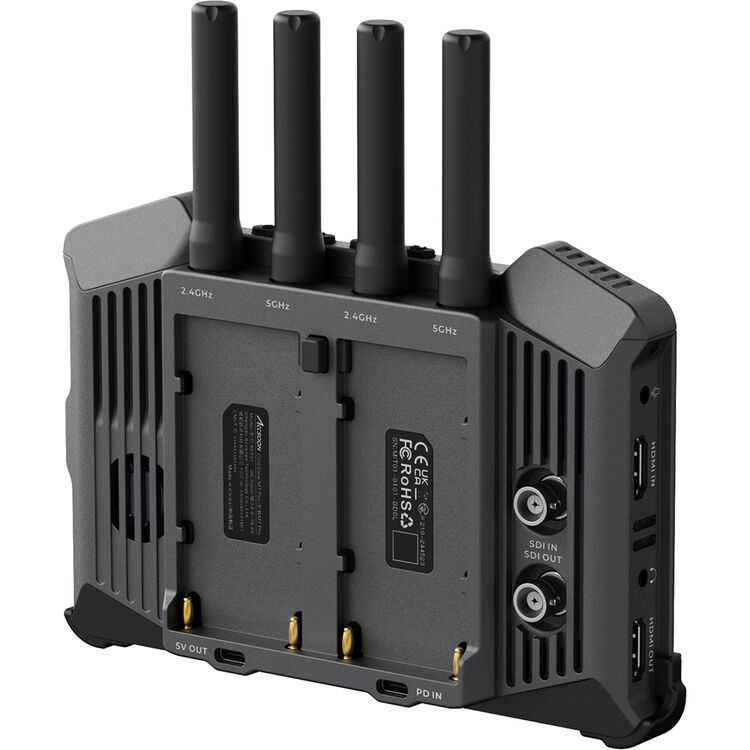

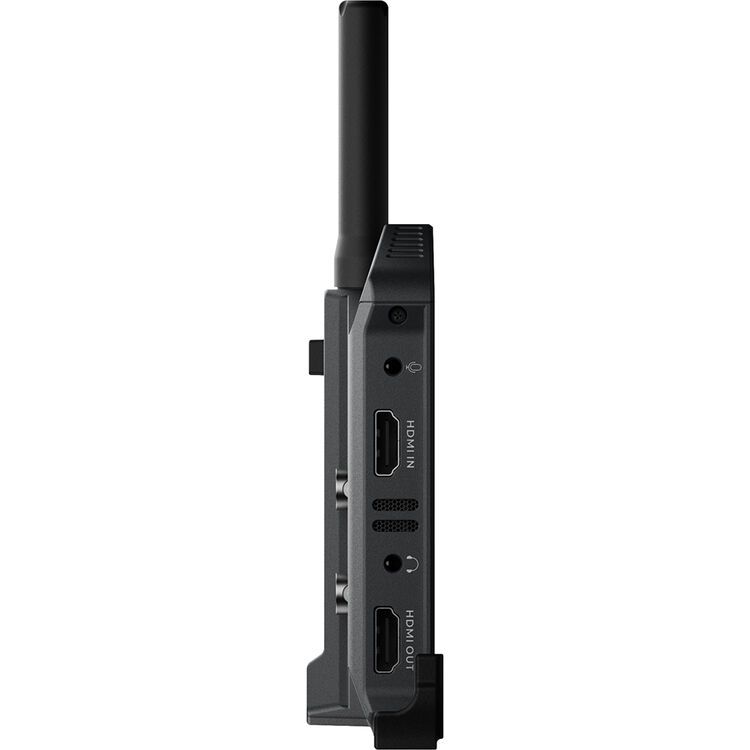

🎞 Video Inputs & Outputs

• 1× HDMI 2.0 Input
• 1× HDMI 2.0 Output
• 1× BNC (3G-SDI) Input
• 1× BNC (3G-SDI) Output

Video signal conversion:

• HDMI → SDI
• SDI → HDMI

Embedded audio: HDMI / SDI

---

🎥 Supported Video Formats

HDMI:

• DCI 4K: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• UHD 4K: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• 1080i: 60 / 59.94 / 50
• 720p: 60 / 59.94 / 50

SDI:

• 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• 1080i: 60 / 59.94 / 50

---

🎚 Professional Monitoring Tools

• Anamorphic De-Squeeze
• False Color
• Focus Peaking
• Histogram
• Waveform
• Vectorscope
• Zebra
• Pixel Zoom
• Image Flip
• Image Freeze
• Screen Markers

---

📡 Wireless Video

• Wireless range: up to 350 m / 1148 ft (line of sight)
• Latency: approx. 60 ms
• Wireless compression: Compressed
• Wi-Fi: Dual-band (2.4 & 5 GHz)
• Bluetooth: Yes
• Mobile app support: No

---

🎧 Audio

• Audio input: 1× 3.5 mm microphone input
• Audio output: 1× 3.5 mm headphone output
• Audio format: 2-channel, 16-bit, 48 kHz
• Built-in speaker: No

---

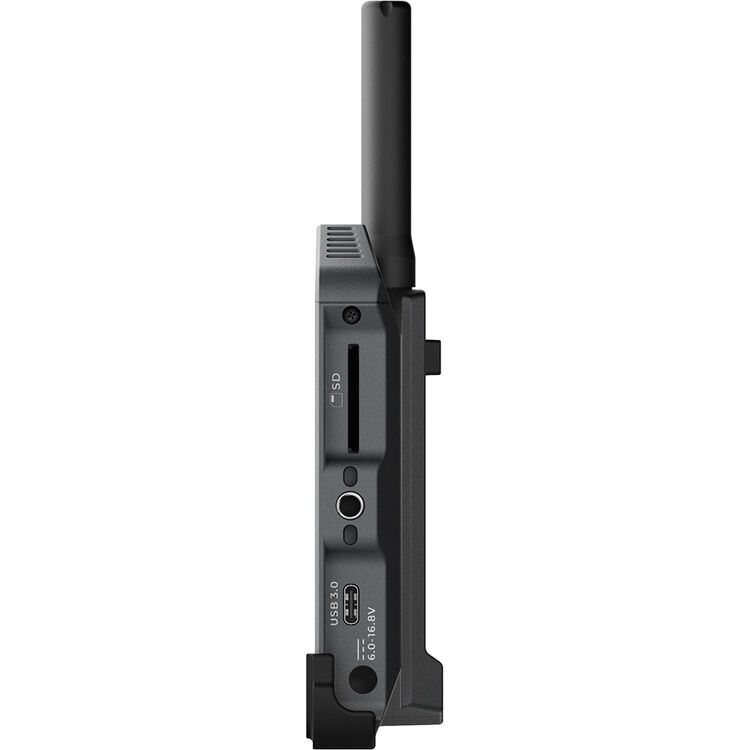

💾 Recording & Media

• Media slot: 1× SD card slot
  • Recording
  • LUT import
  • Firmware updates
• Recording formats:
  • H.264 up to 4096 × 2160
  • H.265 up to 4096 × 2160
• Maximum audio tracks: 2

---

🔋 Power

• Input power:
  • 6 – 16.8 V DC
  • 9 – 15 V DC at 3 A
• Battery mount: 2× Sony NP-F (L-Series)
• Power consumption:
  • 12 W (typical)
  • 28 W (maximum)
• Power I/O:
  • 1× DC barrel (2.1 mm, 16.8 V)
  • 1× USB-C input (9 V / 3 A)
  • 1× USB-C output (5 V / 2 A)

---

🔧 Mounting & Build

• Mounting points: 2× 1/4"-20 female
• Construction: Aluminum housing
• Operating temperature: -10 to 40 °C (14 to 104 °F)

---

📏 Dimensions & Weight

• Dimensions: 7.2 × 4.8 × 1.2"
  (182.2 × 120.7 × 31.5 mm)
• Weight: 1.1 lb / 494 g (excluding antennas)

---

✅ Key Features

• 7" 1000-nit HDR touchscreen display
• HDMI & SDI with cross-conversion
• Wireless video transmission up to 350 m
• Professional monitoring tools & LUT support
• Built-in 4K recording (H.264 / H.265)
• Dual NP-F battery support
• Rugged aluminum body
