📡 Wireless Video Transmission System (HDMI / SDI)

A professional wireless video transmission system with UHD 4K support, ultra-low latency, and a transmission range of up to 2.5 km (1.6 miles). Designed for filmmaking, live production, broadcasting, and professional video workflows.

🎥 Video Interfaces

Transmitter:

• 1× HDMI 2.0 Input
• 1× HDMI 2.0 Output (Loop Out)
• 1× BNC (3G-SDI) Input
• 1× USB-C Output (signal type not specified by manufacturer)

Receiver:

• 1× HDMI 2.0 Output
• 1× BNC (3G-SDI) Output

🔊 Audio

• Embedded audio via HDMI / SDI
• No dedicated audio I/O

⏱ Latency

• 35 ms ultra-low latency, suitable for real-time monitoring

🎞 Supported Video Formats

HDMI:

• UHD 4K: 60 / 50 / 30 / 25 / 24 fps
• 1080p: 60 / 50 / 30 / 25 / 24 fps
• 1080i: 60 / 59.94 / 50

SDI:

• 1080p: 60 / 50 / 30 / 25 / 24 fps
• 1080i: 60 / 59.94 / 50

📶 Wireless Performance

• Transmission Range: up to 2.5 km / 1.6 miles (line of sight)
• Channels: 20
• Wireless Technology: Wi-Fi 6 (802.11ax), tri-band
  • 2.4 GHz
  • 5 GHz
  • 5 GHz
• Frequency Ranges:
  • 2412–2472 MHz
  • 5180–5580 MHz
  • 5660–5825 MHz
• RF Output Power: 17 dBm
• Bluetooth: No

📱 Mobile App Support

• Compatible with Android & iOS
• App: Accsoon SEE
• Cellular support: No

🔋 Power

• Input Voltage: 7.4 – 16.8 V DC
• Battery Mount:
  • Transmitter & Receiver
  • Sony NP-F (L-Series) mount (fixed plate)
• DC Power Input: Barrel connector

🔧 Mounting

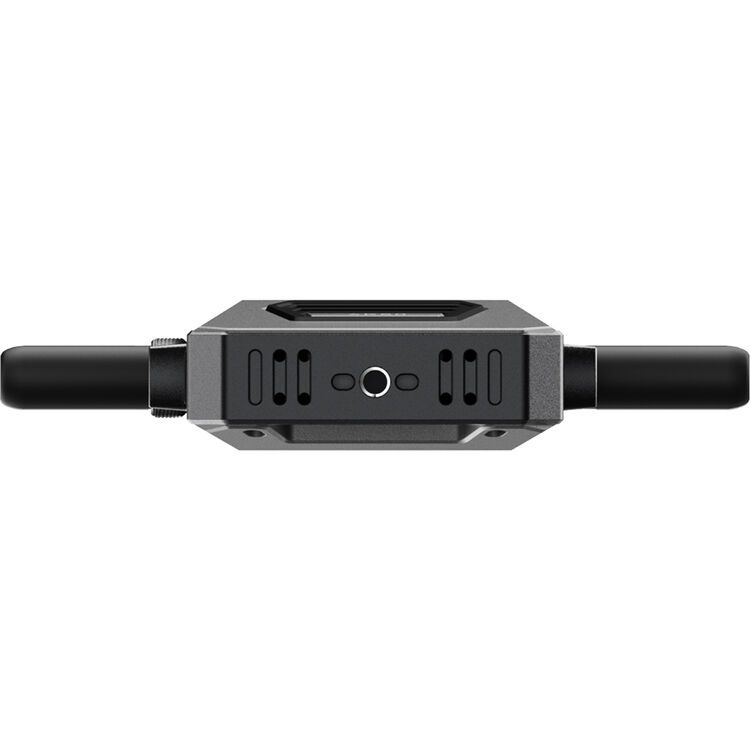

• Bottom mounting point: 1× 1/4"-20 female
• Compatible with tripods, rigs, and accessories

✅ Key Features

• Wireless transmission up to 4K 60p
• Ultra-low 35 ms latency
• Long-range transmission up to 2.5 km
• HDMI & SDI connectivity
• Modern Wi-Fi 6 technology
• Mobile monitoring via app
