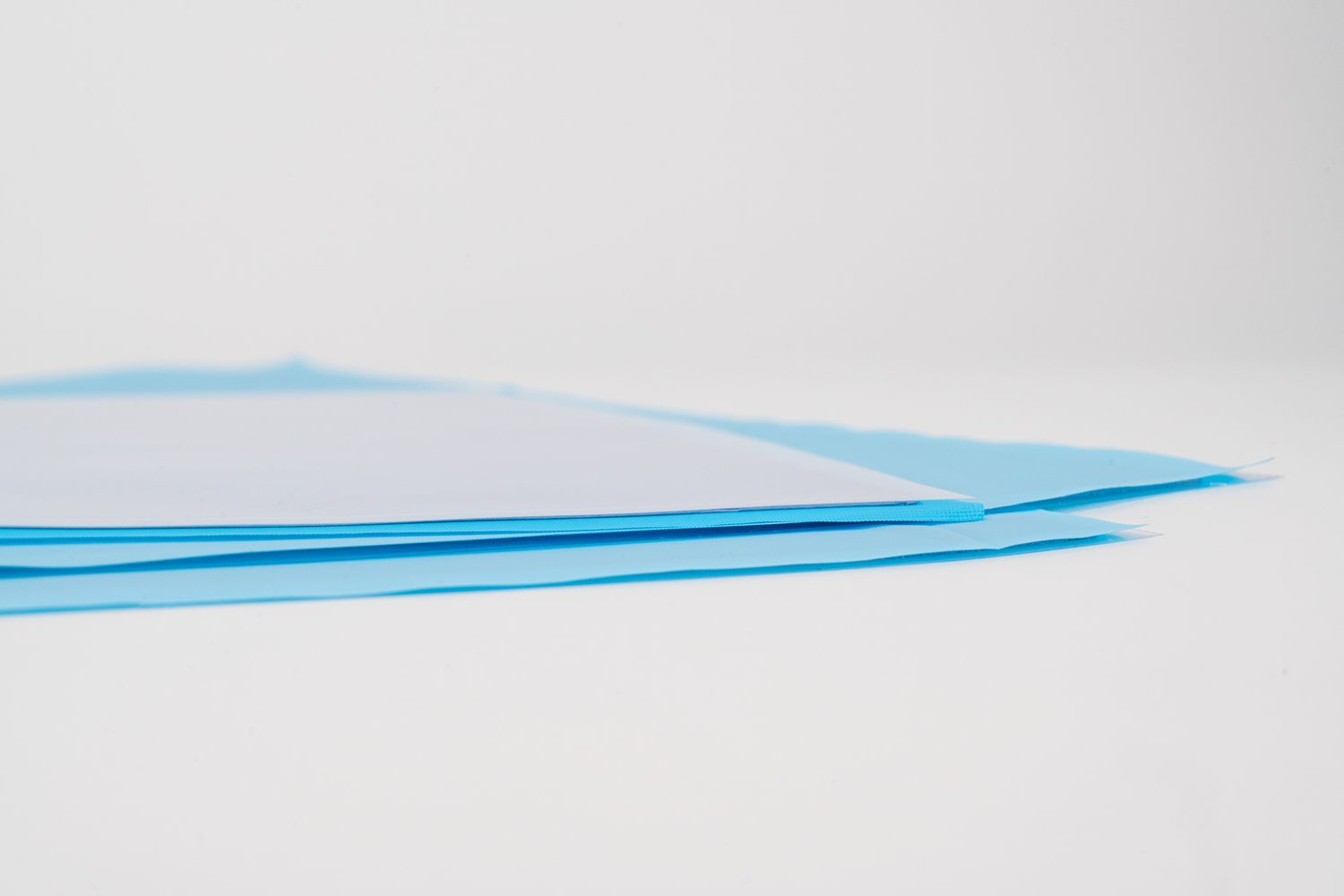

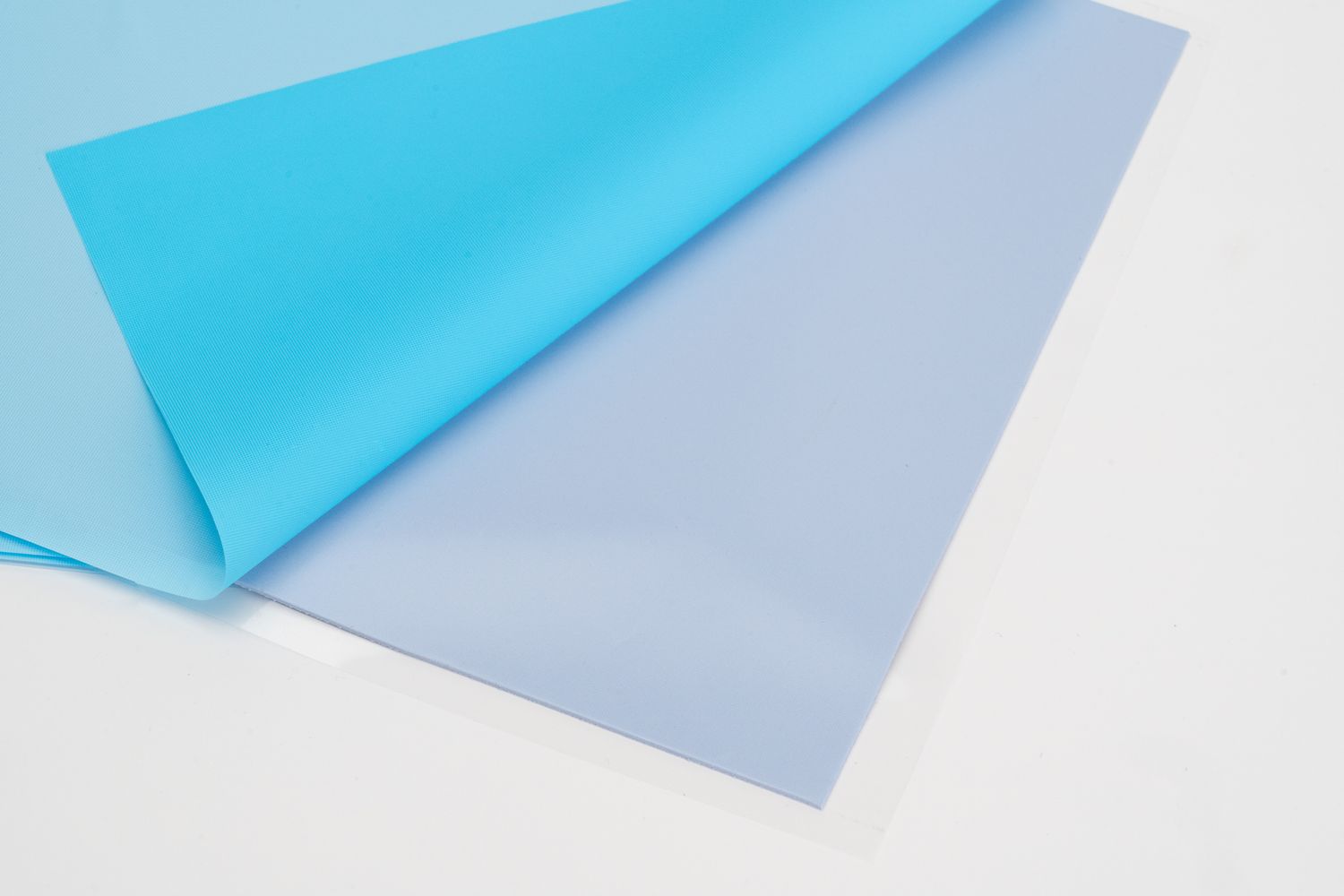

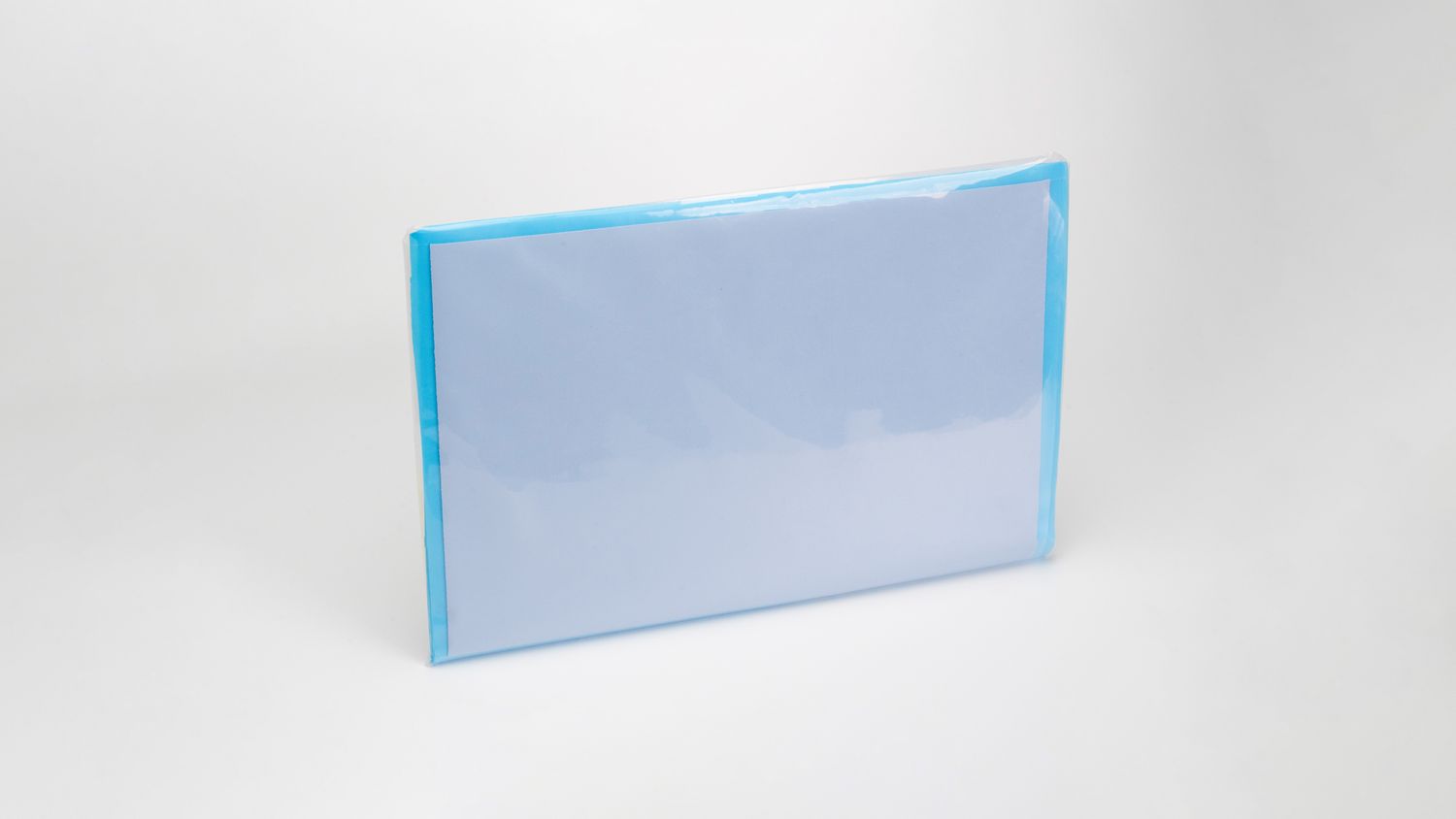

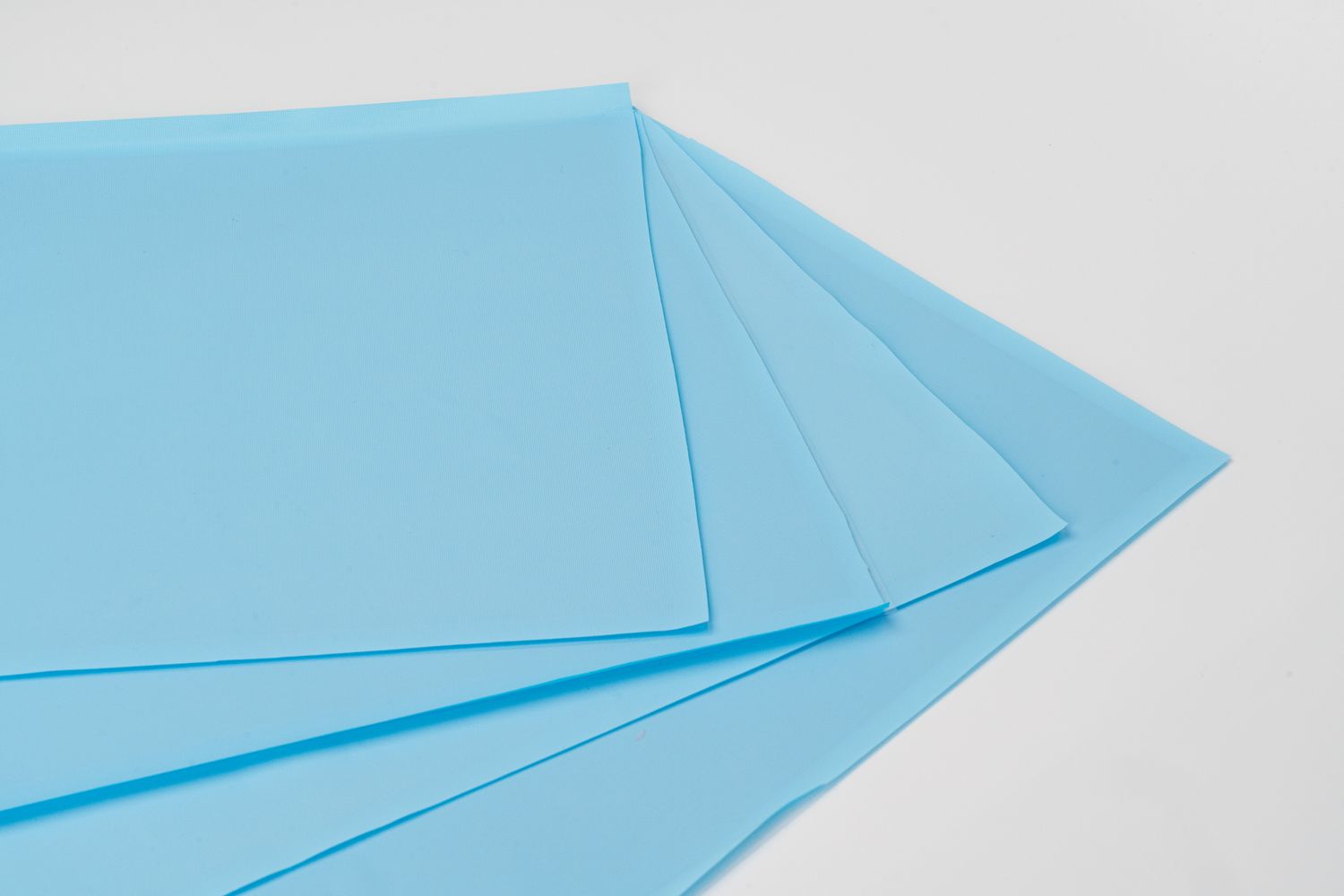

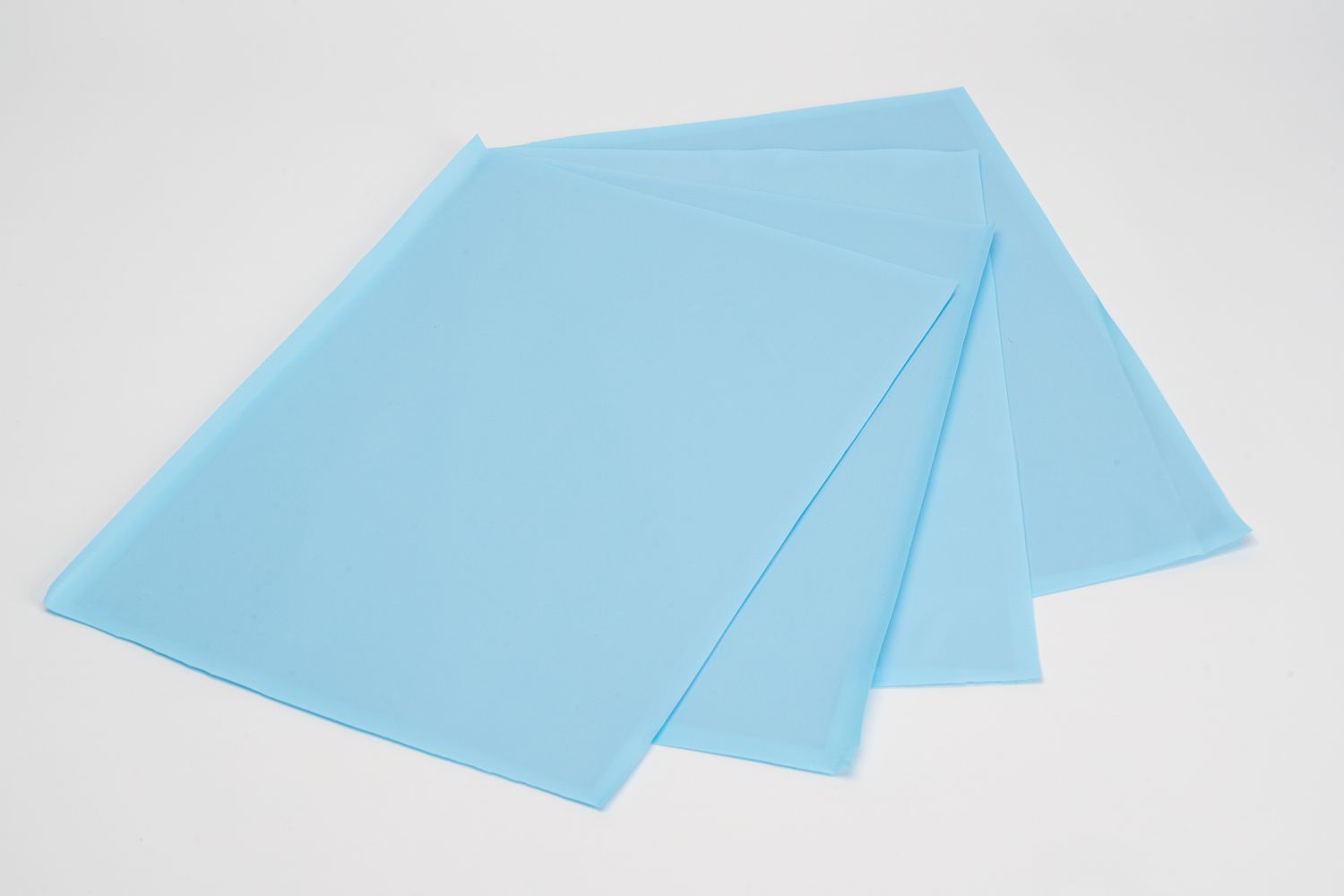

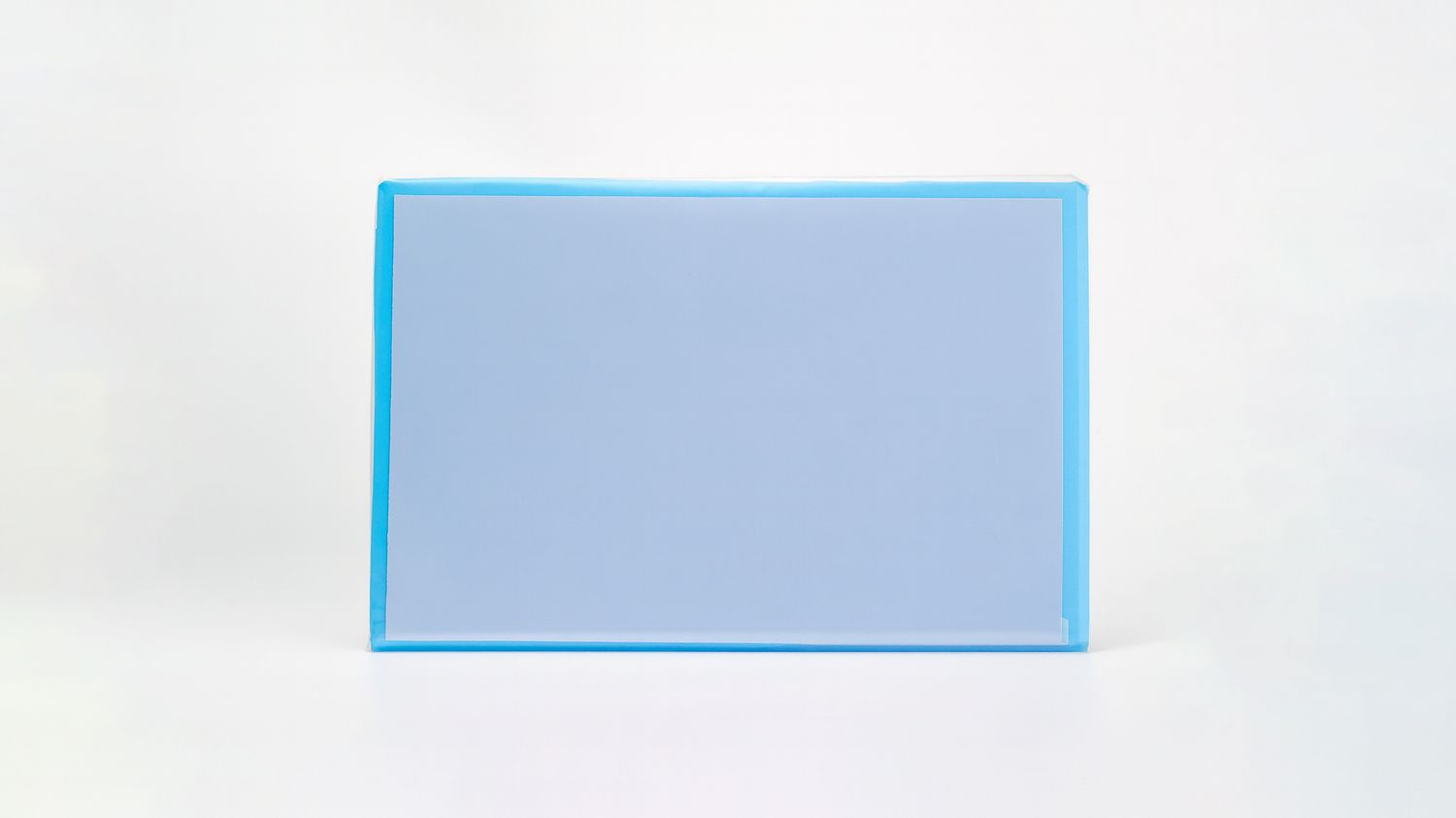

High-Performance Thermal Pad 10 W/m·K — 200×300×1 mm (3K100 Series) | ROHS & REACH Certified / set 4 sheets
SKU Therm200300w10
$120.00
In stock
1
High-Performance Thermal Pad 10 W/m·K — 200×300×1 mm (3K100 Series) | ROHS & REACH Certified / set 4 sheets
Product Details
Weight: 1 100.00 g
Technical Specifications
| Parameter | Value |
|---|---|
| Thermal Conductivity | 10 W/m·K |

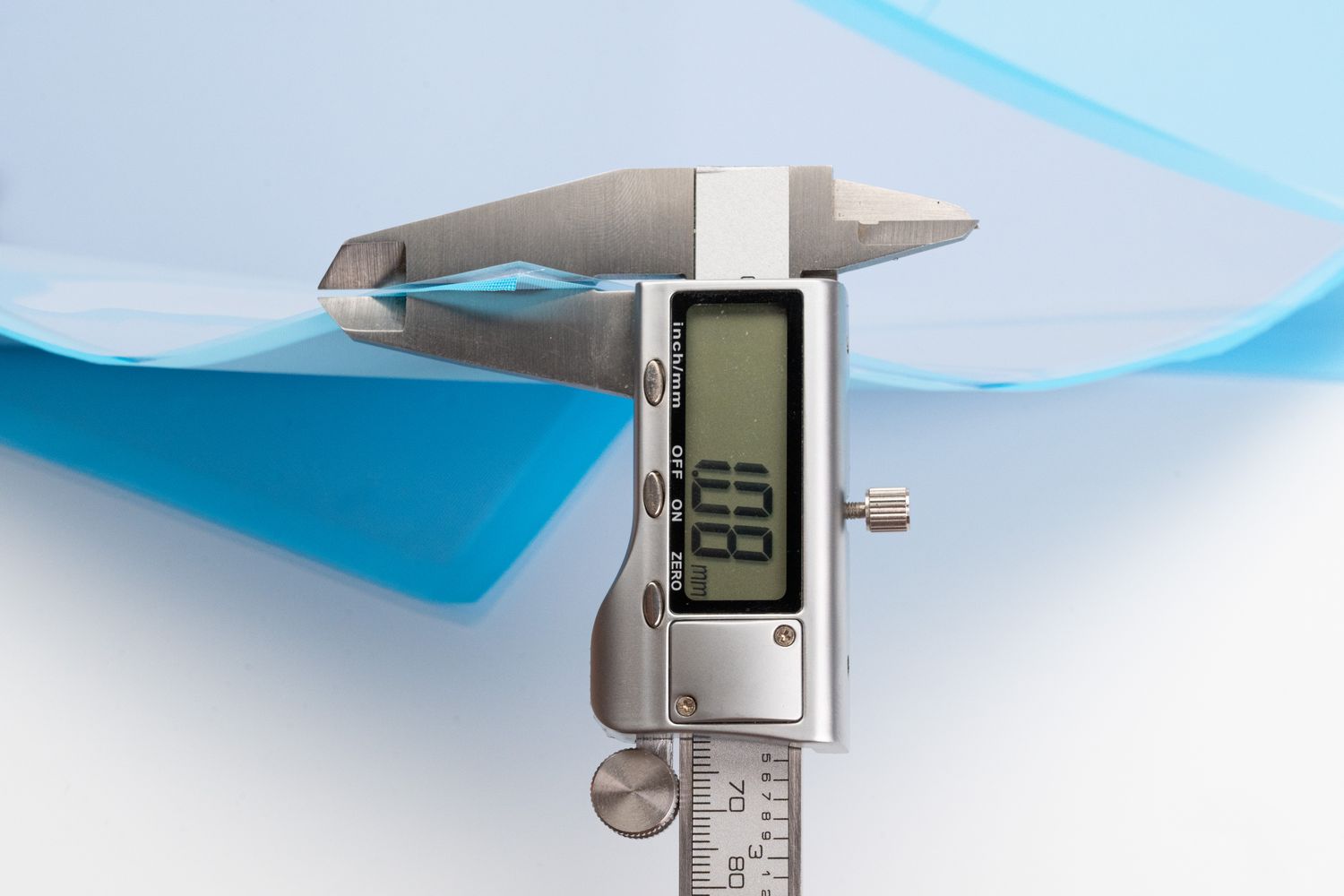

| Dimensions | 200 × 300 × 1 mm |
| Color | Grey / Blue |
| Hardness | 18–40 Shore C |
| Specific Gravity | 3.3 ± 0.1 g/cc |
| Breakdown Voltage | 5 kV/mm |
| Volume Resistivity | 1×10¹¹ Ω·cm |
| Operating Temp | –40°C to +140°C |
| Certification | ROHS, REACH, Halogen-Free |
| Material Type | Silicone + Thermal ceramic fillers |
| Flammability | UL94 V-0 |
| Parameter | Value |
|---|---|
| Thermal Conductivity | 10 W/m·K |
| Dimensions | 200 × 300 × 1 mm |
| Thickness Range (available) | 0.25–30 mm |
| Color | Grey / Blue / Black |
| Hardness | 18–40 Shore C |
| Specific Gravity | 3.3 ± 0.1 g/cc |
| Breakdown Voltage | 5.0 kV/mm |
| Volume Resistivity | 1×10¹¹ Ω·cm |
| Operating Temperature | –40°C to +140°C |
| Flammability Rating | UL94 V-0 |
| Material Composition | Silicone + Ceramic Thermal Filler |
| Natural Adhesion | Yes (no adhesive layer required) |
| ROHS Compliance | Pb, Cd, Hg, Cr(VI) — Not Detected |
| REACH Compliance | SVHC ≤ 0.1% |
| Halogen Content (F, Cl, Br, I) | Not Detected (<10 mg/kg) |
The 3K100 High-Performance Thermal Conductive Pad is a premium silicone-based gap-filling material designed for efficient heat transfer between high-power electronic components and heatsinks or metal enclosures.
With a certified thermal conductivity of 10 W/m·K and excellent mechanical compliance, this pad eliminates micro-air gaps and ensures maximum surface contact for superior cooling performance.
All materials comply with ROHS, REACH, and Halogen-Free requirements according to certified laboratory tests (CTI).
This makes the pad suitable for consumer electronics, industrial equipment, LED lighting, and export-restricted applications in the EU and US.
CERTIFICATION SUMMARY (ENGLISH)
✔ ROHS (Heavy Metals & Restricted Substances)
The material passed all ROHS analytical tests with the following results:
- Lead (Pb): Not Detected
- Cadmium (Cd): Not Detected
- Mercury (Hg): Not Detected
- Hexavalent Chromium (Cr(VI)): Not Detected
All flame retardants (PBBs / PBDEs) and phthalates (DBP, BBP, DEHP, DIBP) were also Not Detected.
REACH SVHC (Substances of Very High Concern)
REACH screening confirmed that all SVHC substances are below the regulatory limit:
- SVHC concentration: ≤ 0.1% (w/w)
This ensures the material is safe for EU-directive–regulated applications.
